Generate stable sine and square waves with ±5% accuracy across 10 Hz to 1 MHz using the TAG-101 function generator built for precise testing and calibration applications.
Measure signals across five ranges with sine distortion as low as 0.05% (500 Hz–50 kHz) and adjust signal levels using the 0dB to -50dB six-step attenuator.
Create clean square outputs reaching 10 V peak with a 0.5 μs rise time, while syncing frequency to external voltage inputs for flexible modulation testing.

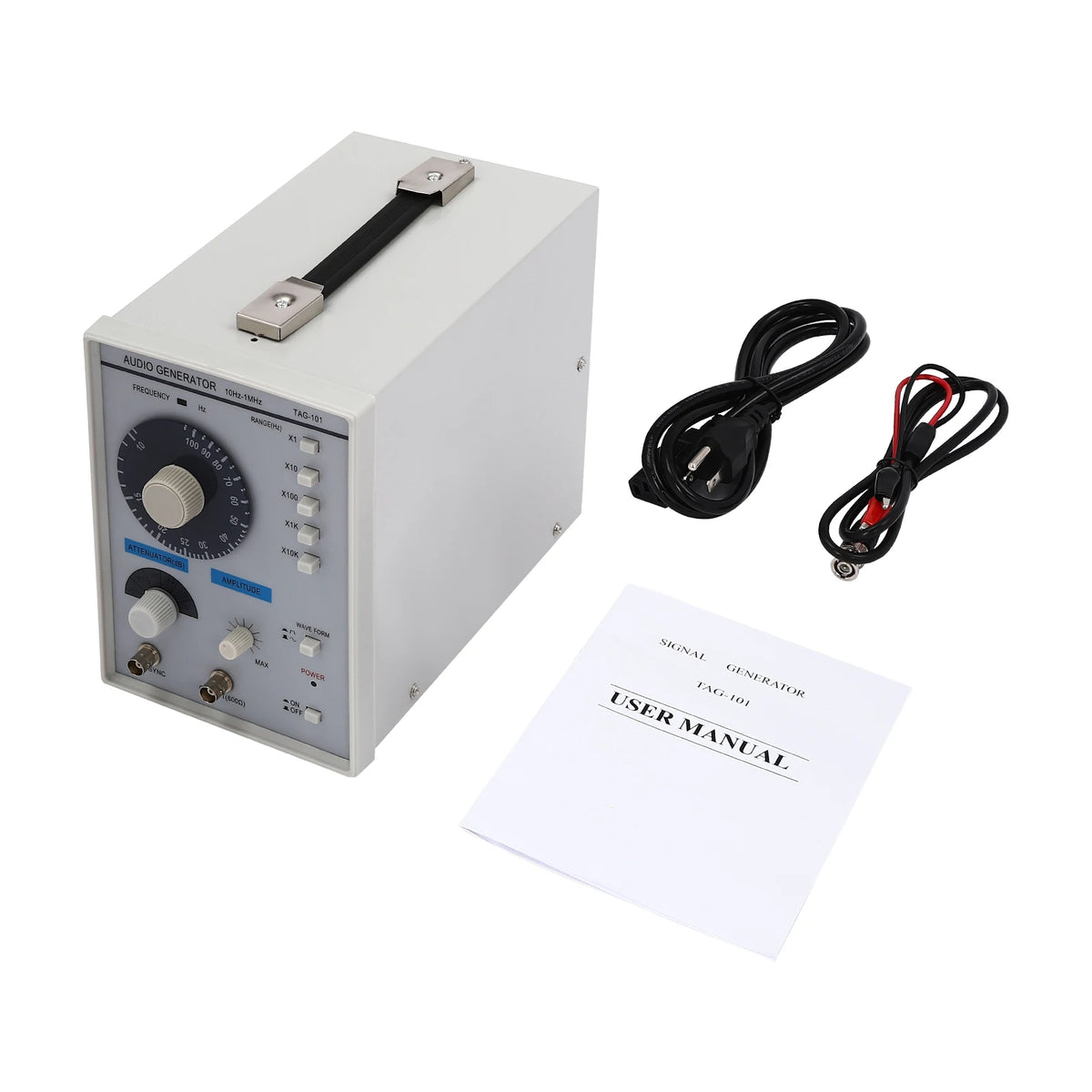

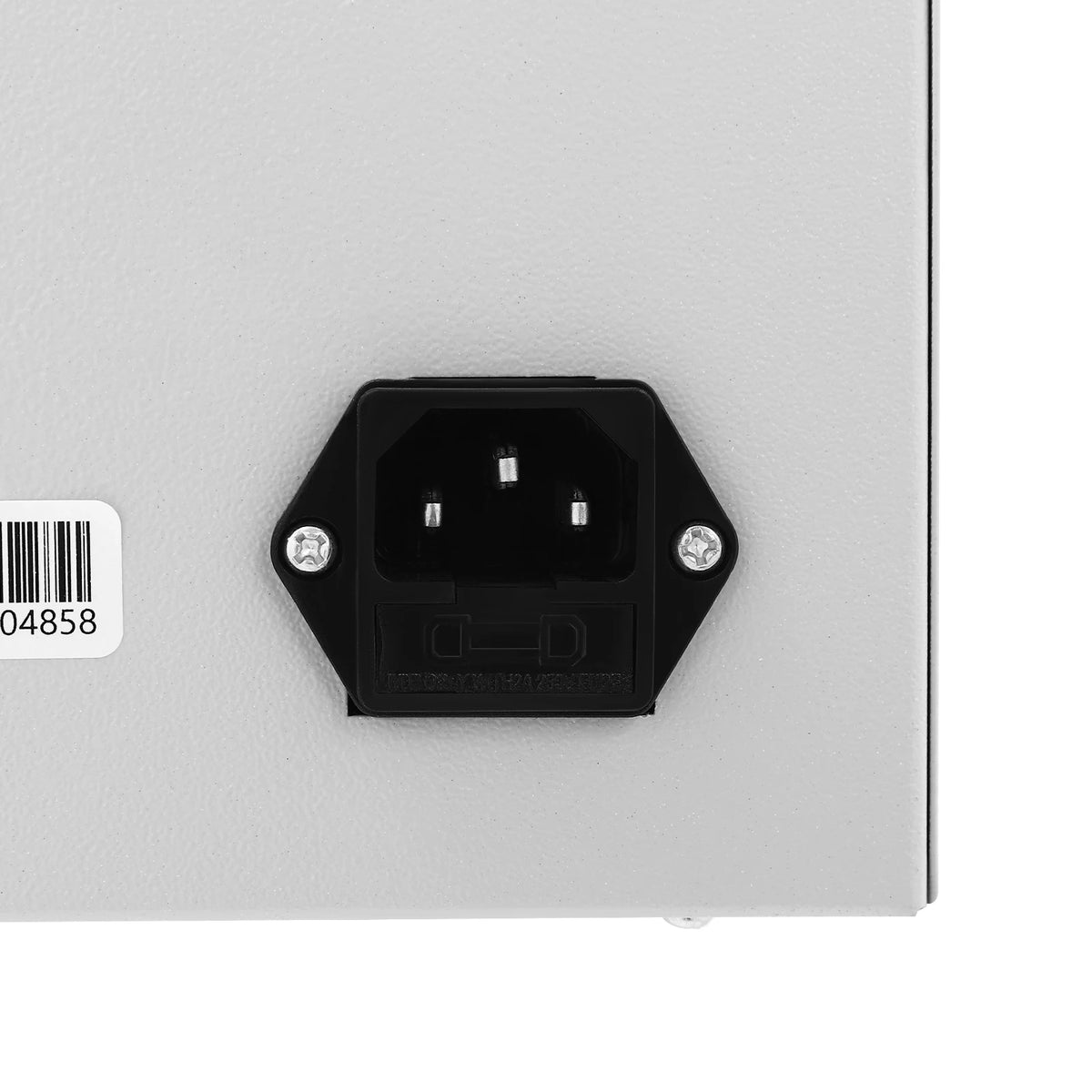

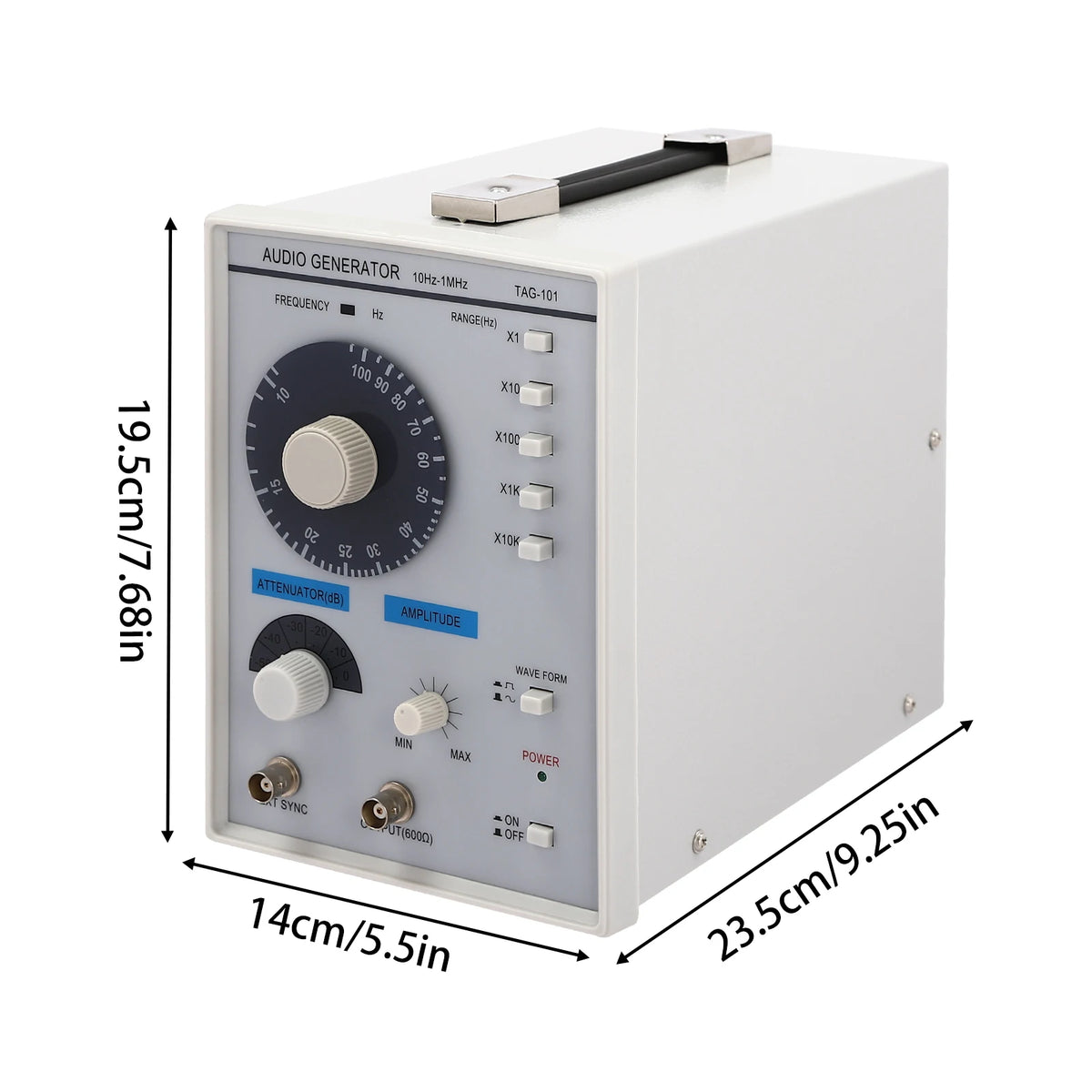

Place this 23.5 × 14 × 19.5 cm instrument on your desk with the included BNC cable and 1.2 m power cord, drawing just 8 W from an AC 110 V source.

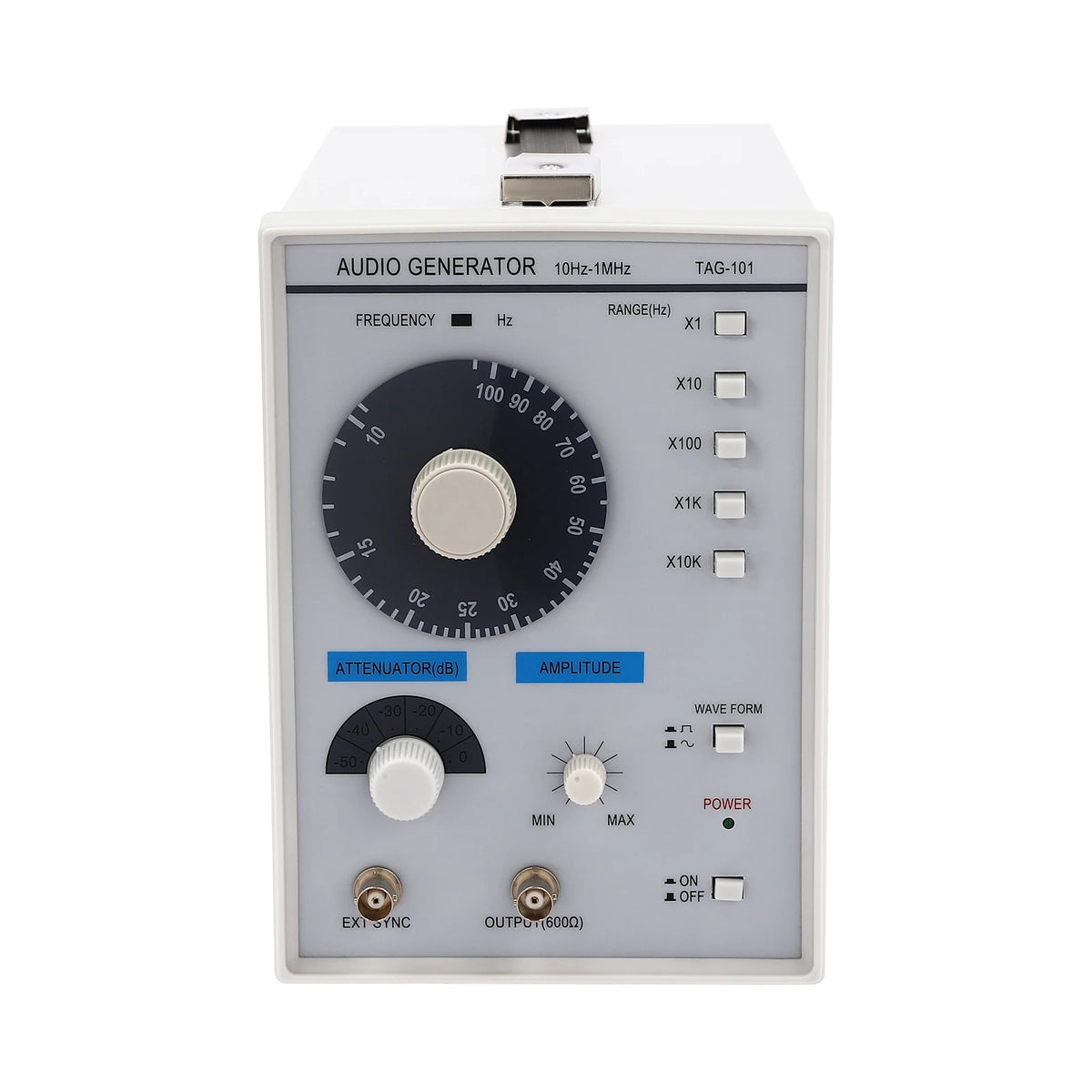

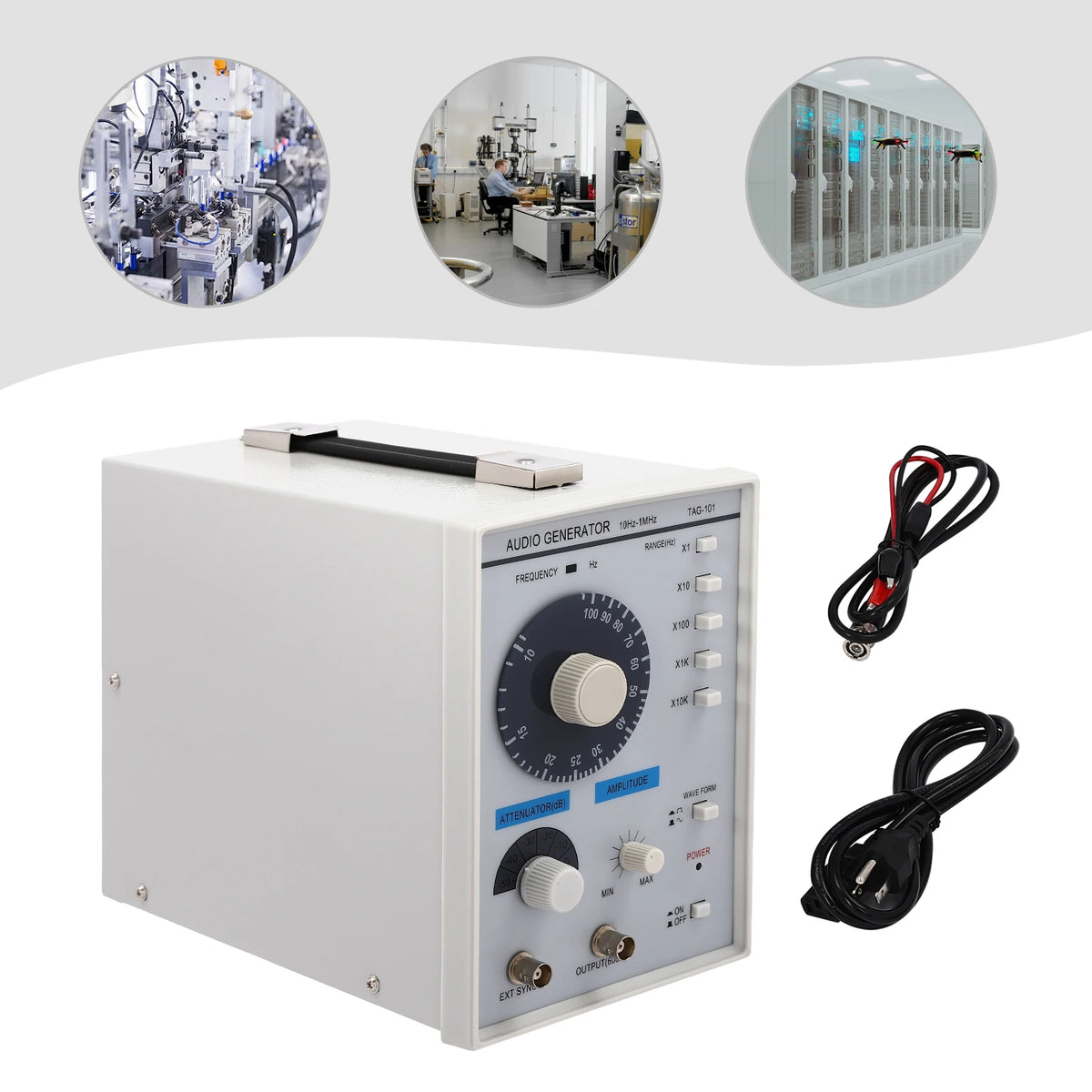

Operate intuitive controls for labs, education, or production work, using the status indicator and fine-tunable settings to maintain reliability during diagnostic and validation tasks.
